Transformador montado en una plataforma de tres fases

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers

Todas Las Categorías

Transformador trifásico del aislamiento

Transformador montado en una plataforma de tres fases

Transformador montado en una plataforma monofásica

Transformador montado en poste

Transformador de bobina fundida

Transformador del aislamiento de UPS

Transformador médico del aislamiento

Transformador industrial del control

Transformador del control monofásico

Transformador toroidal del aislamiento

Tipo seco trifásico transformador

Transformador de poder del E-I

Regulador de voltaje trifásico

Reactor trifásico

Contacta con nosotros

Mr. Steven

steven@winley-electric.com

86-18650108051

Contacta ahora

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers

Nombre De La Marca:	WINLEY
Número De Modelo:	ZGS-1500/0.48
Cuota De Producción:	1unidad
Precio:	$5000-$100000
Detalles Del Embalaje:	caja de madera contrachapada
Condiciones De Pago:	T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

UL/cUL,CE,ISO

Documento:

Tipo de transformador:

Transformador montado en la almohadilla

Fase:

Fase triple

Tipo de alimentación:

Alimentación radial

Capacidad:

1500 KVA

Voltaje primario:

Voltaje secundario:

416Y/240

Método de enfriamiento:

Cañón

Material sinuoso:

Cobre

Capacidad de la fuente:

1000set/mes

Descripción del producto

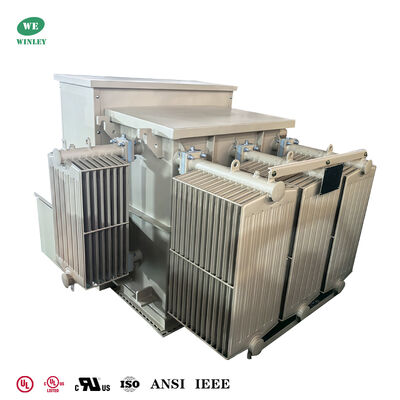

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers

This 1500 kVA, three‑phase, pad‑mounted oil‑immersed transformer is designed to North American IEEE/ANSI standards with a 480 V primary and 416Y/240 V secondary. It features FR3 fire‑retardant ester oil and copper windings.

Product factory photos

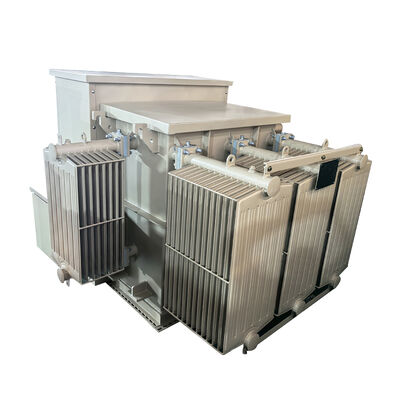

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers 0

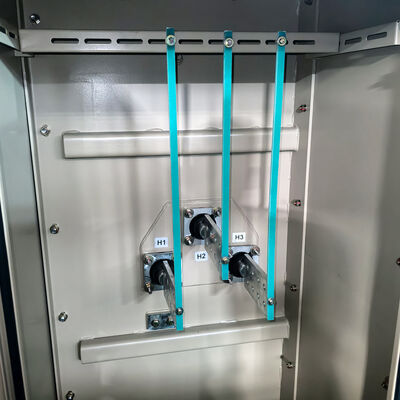

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers 1

Winley Electric’s three‑phase transformers for the North American market are UL and cUL certified, delivering reliable, high‑quality power solutions backed by extensive regional experience.

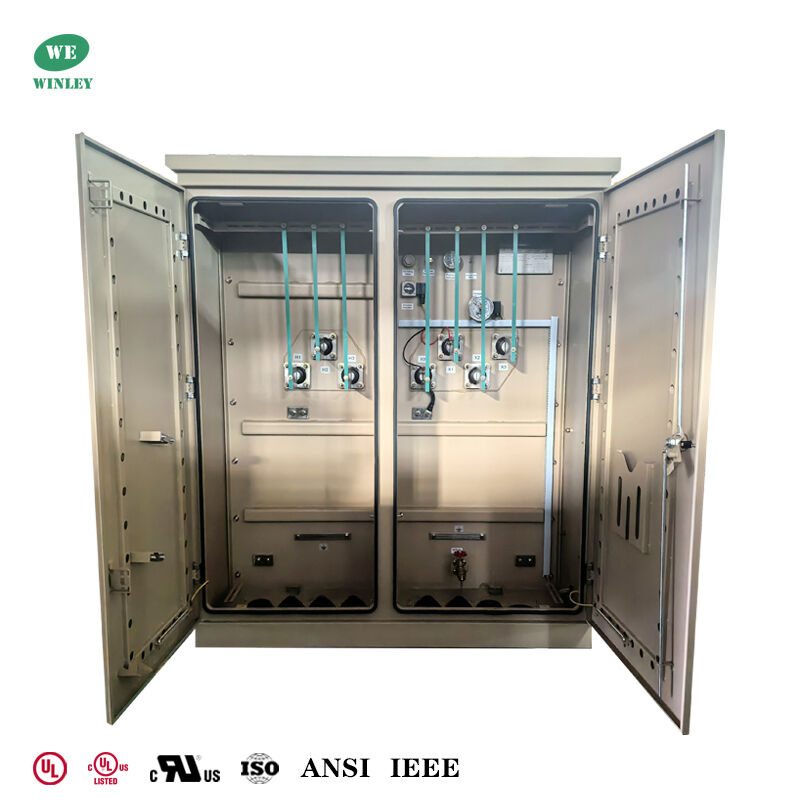

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers 3

Technical drawings

The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.

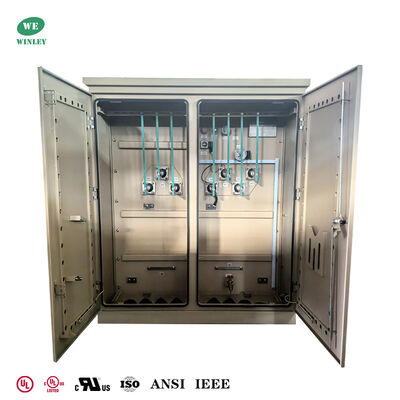

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers 4

Main data

No.	Item	Unit	Reqirement
1	Type	~	oil immersed, pad mounted
2	Rated capacity	kVA	1500
3	No. of Phase	~	3
4	Primary Voltage	V	480
5	Primary bushing	~	(3) 8-hole spade
6	Secondary Voltage	V	416Y/240
7	Secondary bushing		(4) 8-hole spade
8	Cooling method	~	KNAN
9	Rated frequency	Hz	60
10	Vector group	~	Dyn1
11	Insulation class	~	A
12	Temperature rise	K	65
13	insulation liquid material	~	FR3 oil
14	Service condition	~	outdoor
15	Standard	~	IEEE ANSI C57.12.00

Standard Features

• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color.
• Designed, manufactured and tested in accordance with the latest ANSI standards

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

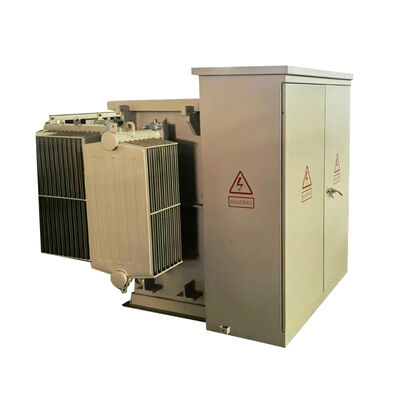

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers 5

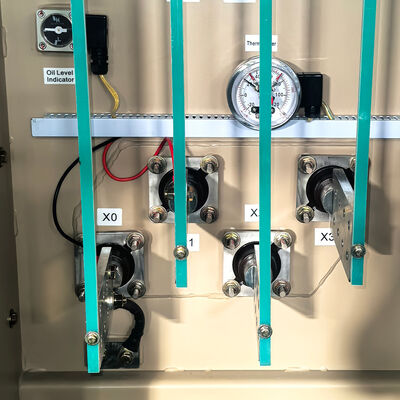

1500kva Three Phase Pad Mounted Transformer Oil Filled Low Voltage 480V To 240V Live Front Electrical Power Transformers 6
