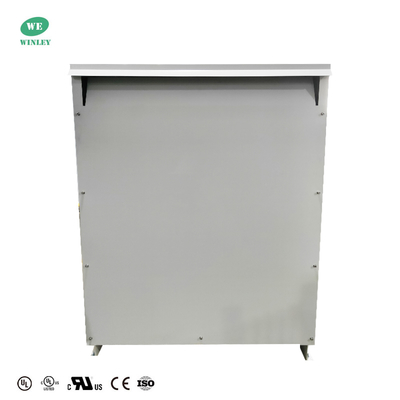

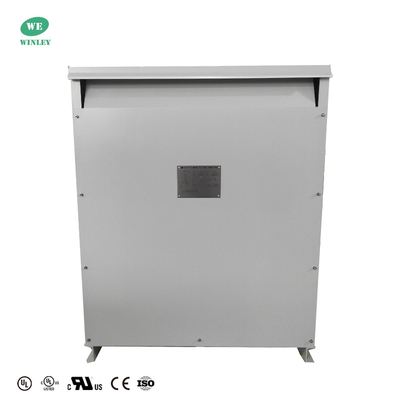

UL/cUL listed 225KVA Three Phase Dry Type Transformer C Class Insulation 480V To 220V NEMA 3R

summary

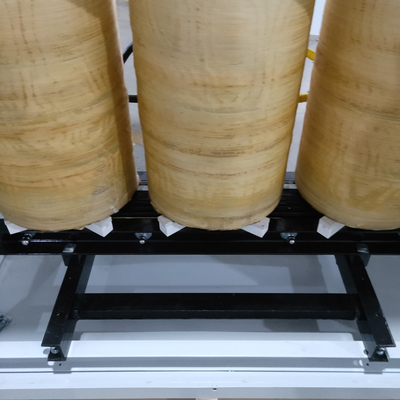

VPI transformer wiht C-class insulation , a maximum allowable temperature of 220°C, and a winding temperature rise limit of 150K.The transformer uses NOMEX® paper as the main insulation material, and the coil is made of vacuum pressure impregnation and high-temperature curing.

WINLEY has obtained C-Class Insulation Transformer UL/cUL certification, Our designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI C.57, DOE, and IEEE as applicable.

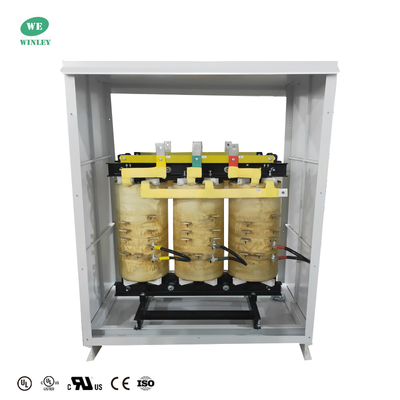

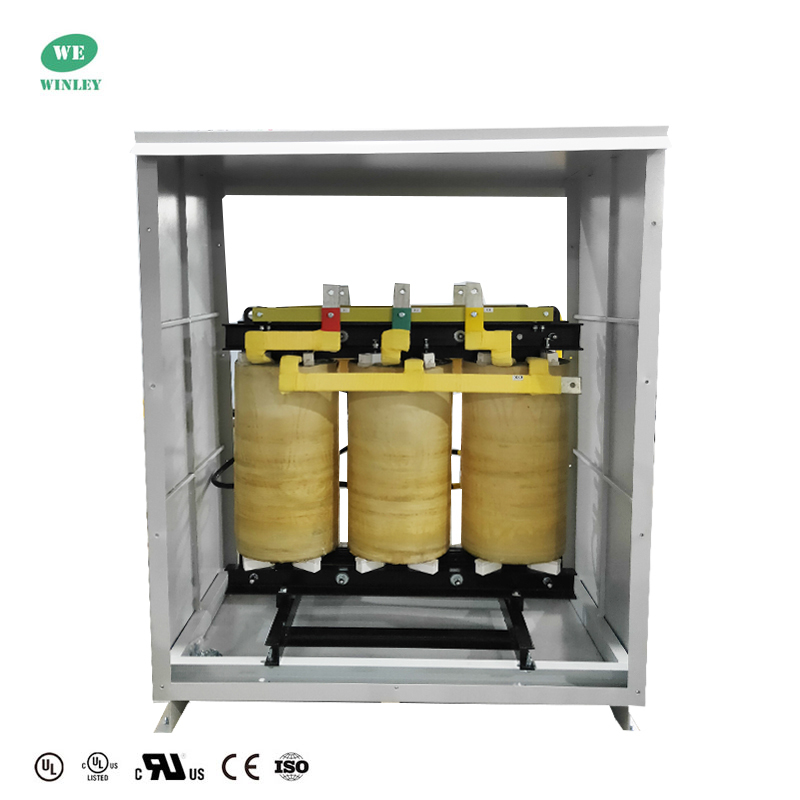

Product Structure

Specification


Drawing

WINLEY‘s C class insulation transformer advantage

• Enhanced Safety: Dry type transformers featuring Nomex insulation eliminate the risk of flammable materials, such as fluids and combustible components, providing a safer operating environment.
• Reduced Transmission Losses: With superior insulation, these transformers can be placed closer to their loads, minimizing low-voltage line lengths and consequently lowering transmission losses.
• Cost-Effectiveness: Designed to withstand temperature rises up to 150 degrees Celsius, transformers with premium-grade insulation require less conductor and steel. This reduction in material requirements leads to lower overall costs and simplifies installation.
• Improved Harmonic Loading: Dry type transformers with Nomex insulation have enhanced capabilities for managing high temperatures caused by heavy harmonic loads, making them suitable for demanding applications.

Specification

Production process





FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
